Design and Build of New Stormwater Drains

At Vitality Plumbing, we specialise in stormwater drain design and build services for residential, commercial and industrial properties across Boolaroo and the Lake Macquarie area. A well-designed stormwater system is essential to protect your property from excess rainfall, erosion, and potential flood damage — especially in older properties or new developments where existing drainage is inadequate.

Modern Designs

ladder next to pipes and valves

Modern stormwater drain design aims to reduce flooding and erosion by carefully controlling runoff flow rates and encouraging infiltration where possible. Systems typically include pipes (minimum 300mm diameter), pits and water-sensitive urban design elements to manage rainfall effectively. Pipes are designed to achieve self-cleaning velocities of around 0.8–1.0 m/s, while preventing excessive wear (generally capped at 6.0 m/s). Networks are commonly designed to handle 1-in-20-year ARI (Average Recurrence Interval) storm events within the pipe system, with 1-in-100-year events managed via designated overland flow paths as designated by AS/NZS 3500.3:2003. Old designs or ones that breach these standards are more prone to blockages.

Key Design Considerations

  • Flow Capacity: Drainage systems must control runoff from hard surfaces so discharge rates remain close to natural, pre-development conditions. Overland flow paths are typically designed to handle 1-in-100-year ARI storm events.
  • Pipe Requirements: Pipes are generally a minimum of 300mm in diameter and commonly constructed from reinforced concrete or approved HDPE materials for durability and compliance.
  • Velocity Management: Systems are designed to maintain self-cleaning flow velocities of approximately 0.8–1.0 m/s, while limiting maximum speeds to around 6.0 m/s to prevent pipe damage.

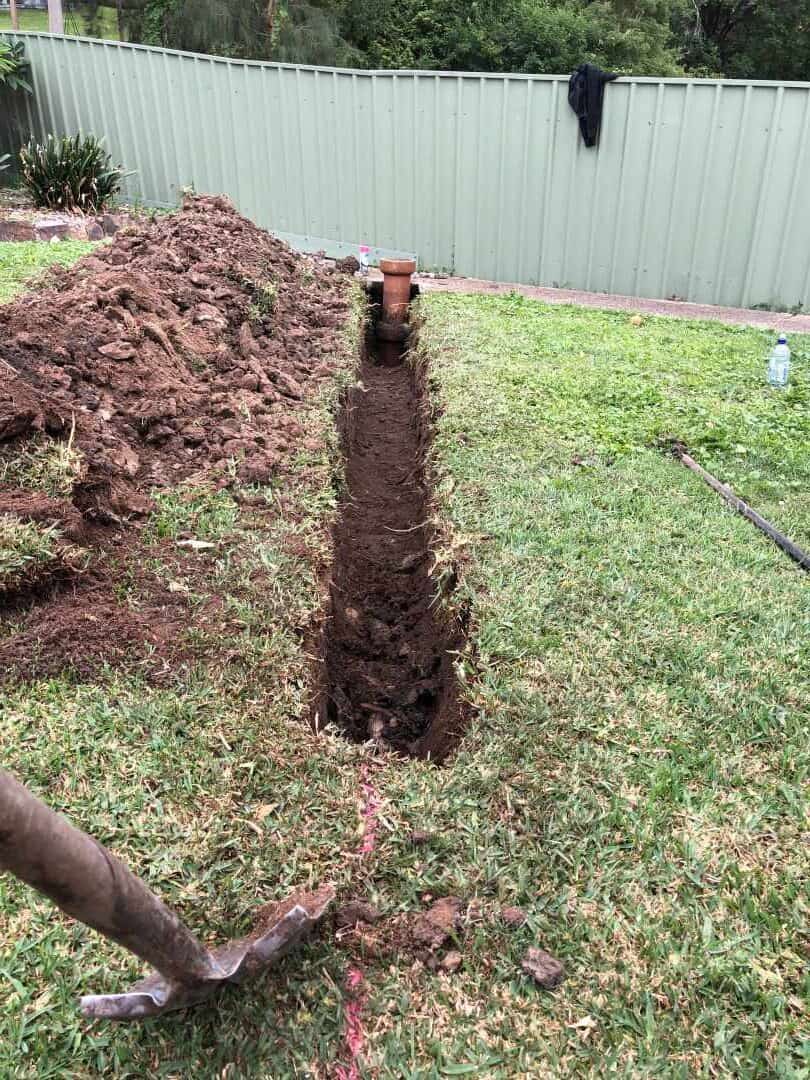

  • Slope and Cover: Adequate fall (commonly around 1:60 or 1.65%) is required to support gravity flow. Pipes are usually installed with at least 750mm of cover, though this may be reduced to 600mm for short sections.
  • Water Sensitive Urban Design (WSUD): Solutions such as raingardens, gravel infiltration zones and permeable paving help filter, slow and absorb stormwater, reducing pressure on downstream drainage systems.

System Components and Layout

  • Inlet Points: Grated pits, gullies and kerb inlets are positioned to effectively collect surface runoff and direct it into the drainage network.
  • Pipes and Channels: Stormwater is conveyed through underground pipe systems or open channels, which may be stabilised or naturalised with rock and vegetation to improve durability and environmental outcomes.
  • Outlets and Discharge Areas: Discharge points must be stabilised to prevent scour and erosion, often using protective materials such as rock armouring.
  • Overflow Paths: Safe, designated overland flow routes are incorporated to manage storm events that exceed the system’s pipe capacity.



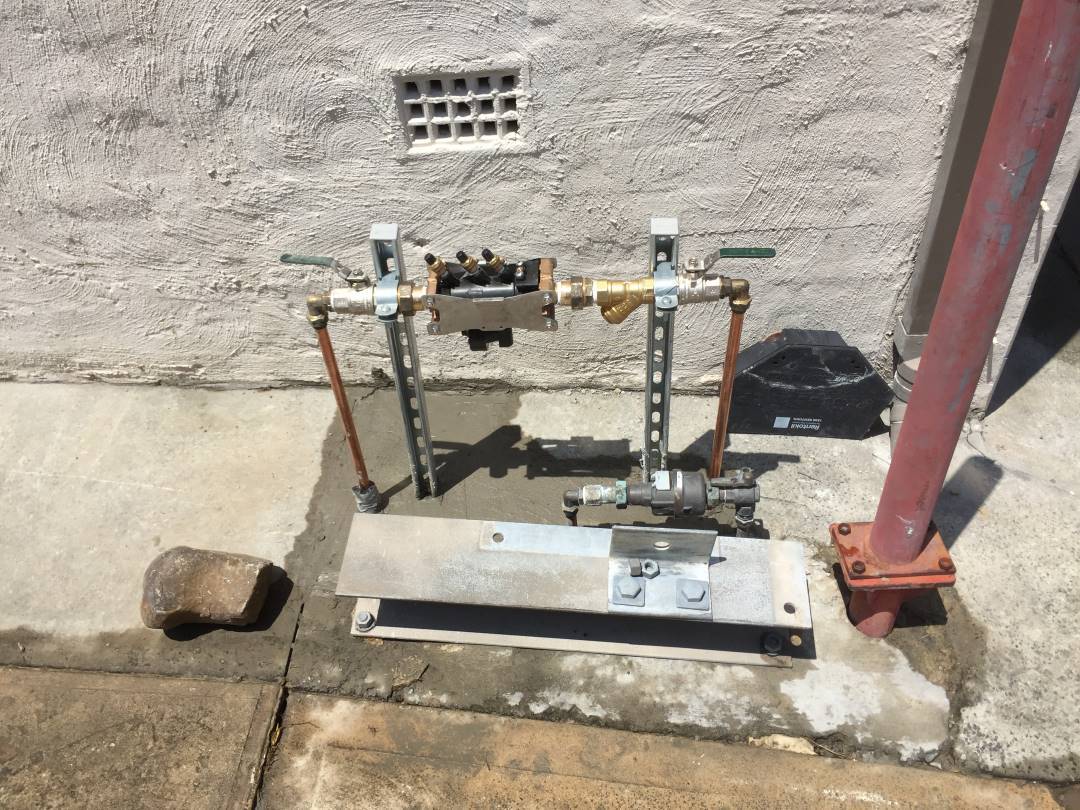

metal pipe with pipes and a metal plate
hot water system

Modelling and Hydraulic Calculations

  • Rational Method: Commonly applied to estimate peak stormwater runoff, typically based on a minimum rainfall duration of five minutes.
  • Kinematic Wave Approach: Used to calculate travel time for overland flow, generally with limits on maximum flow path length (for example, up to 60 metres).
  • Hydraulic Modelling Software: Programs such as 12d and similar platforms are used to design pipe networks and simulate drainage performance under various storm conditions.

Common Design Constraints

  • Service Clearances: Stormwater pipes must maintain minimum vertical and horizontal separation distances (often around 150mm) from other underground services.
  • Groundwater Conditions: In areas with high water tables, rubber ring jointed pipes are typically required to prevent infiltration.
  • Use of Pumps: Pump systems are generally avoided and only permitted in specific situations, such as certain basement drainage applications.

Experienced Team

Vitality Plumbing’s team takes a personalised approach to every project, starting with a detailed site assessment and customised drainage plan that maximises water flow while complying with local council standards. Whether you’re installing a drainage system for a new build or upgrading an outdated one, we handle the entire process from initial design through to installation. You can expect professional planning, precision execution, and long-lasting results requiring fewer repairs and maintenance.
